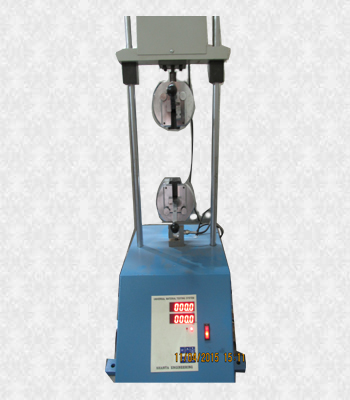

Hand Operated Tensile Testing Machine





Hand Operated Tensile Testing System, the two column frame with a  hand wheel operated lead screw is a perfect tool for tension, compression and flexural testing of springs, rubber, paper, film etc., with apt attachments. These are appreciated for their durability, accuracy of results and high tensile strength. It is a better Tensile Tester Machine having variety of applications.

Features:

  • Table Top Model
  • Digital Display of load and Elongation.
  • Feather touche Key board operation.
  • Tare Facility for force and displacement.
  • Load display in Kg. Or Newton.

Specification:

MODEL SET-H-1000 N SET-H-2500 N SET-H-5000 N
Max permissible force In Kg 100 250 500
Load Resolution in Kg 0.01 0.03 0.05
Elongation/Compression Resolution in mm 0.1 0.1 0.1
Width between column in mm 200 200 200
Load Cell Safety Alarm Alarm Alarm
Size (w x d x h) in mm 300 x 430 x 1100 300 x 430 x 1100 300 x 430 x 1100
Power Supply 230 VAC 50 Hz,
Single Phase
230 VAC 50 Hz,
Single Phase
230 VAC, 50 Hz,
Single Phase
