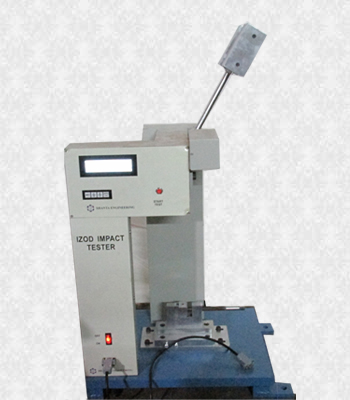

Izod Impact Tester - Charpy Impact Testers
( AS PER ASTM D-256 )

FEATURES

 SIXTEEN CHARACTERS BY 2 LINE BACK LIGHTED LCD DISPLAY.
FOUR KEYS.
ANGLE MEASUREMENT BY ENCODER (500 PPR TWO OUTPUT PULSES)
SELECTION OF HAMMER RANGE (FOUR TYPES).
PROGRAMMABLE THICKNESS AND WIDTH OF THE SAMPLE.
SELECTABLE RANGE OF UNIT TO DISPLAY THE BREAK ENERGY IN – JOULES (J),
    JOULES/cm^2 (J/cm^2),  JOULES/METRE (J/m) AND POUNDS/SQUARE INCH (Psi).
NONVOLATILE MEMORY FOR STORAGE OF SELECTED RANGE, PROGRAMMED THICKNESS,
    PROGRAMMED WIDTH AND THE SELECTED UNIT FOR BREAK ENERGY.
RELEASE SWITCH FOR THE RELEASE OF THE HAMMER ARM - TO TEST THE SAMPLE.
MAINS OPERATED – 110/220V AC +/- 10 %, 50 Hz SUPPLY INPUT.


FEATURES Oxygen Index Apparatus

Micro adjustment gas flowmeters to indicate flow of Oxygen ,
    Nirogen and mixture of gas to +/- 1% accuracy. Calibration certificate of the manufacturer will be provided.
  Gas pressure gauges to indicate the pressure of Oxygen and Nitrogen. ( Range- 0- 100psi)
    Least count- 1psi.
  Specimen holders both are provided as per ASTM D 2863 clause 6.2
Gas dispersion in chimney is through circulation inside a hollow cylinder placed at the bottom of the
    gas chimney.
% AGE  limiting Oxygen value is displayed with the help of digital oxygen meter.No need to
    calculate the limiting oxygen value by observing the volumes from the gas flow meters
The equipment can be used to carry out temp. Index.
Heaters provided of 1KW capacity and protection Through solid state relay is a standard feature.
PID Temp. controller of accuracy +/- 0.2degree Centigrade
