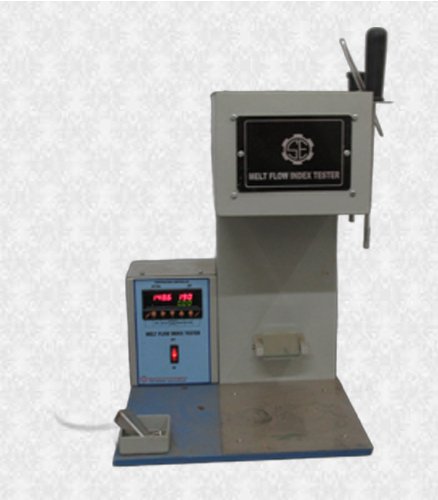

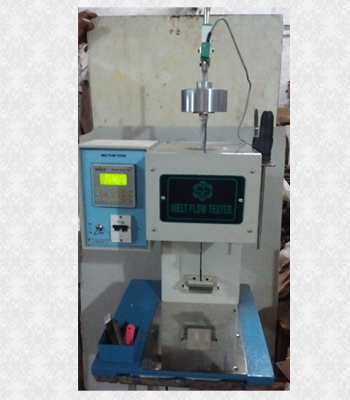

Melt Flow Index Tester - As Per ASTM D 1238


Melt Flow Index instrument measures the rate of extrusion of molten resins through a die of specified length and diameter under prescribed conditions of temperature, load, piston position.

This instrument measures the rate of extrusion of molten resins through a die of specified length and diameter under prescribed conditions of temperature, load, piston position.

Instrument with the following accessories are supplied : Digital Timer, Temp. Controller (PID), Piston, Barrel Cleaner, Orifice Cleaner Scoop,

SPECIFICATION

1. Weights : 2.16 kgs. and 5.0 kgs.
2. Max.  Temp.  Ambient to 300 ° C
3. Resolution : 0.10 ° C
4.Accuracy : + 0.20 ° C
5. Timer : 0-99.9 min.

Also MFI Tester available as per ASTM D1238, method B
Features
PLC base Machine
Charging the sampole is manual
No weighing as in Method A
Automatic measurement of MFI with the help of Encoder
High accuracy
Best for the high flow material where manual testing would be difficult

Additional Information:
  • Item Code: ASTMD-1238
  • Minimum Order Quantity: 1 Unit


Melt Flow Index Tester (According to ASTM D 1238 to 1295)
