Universal Tensile Testing Machine



Shanta Engineering Universal Testing Machines are electro mechanical machines with digital display of load & displacement & pulley belt system for changing speeds. The machines are designed for testing various materials like rubber, plastics, cables, leather, paper, plywood and metals. Tension, compression, bend and flexural tests can be performed on these machines with suitable grips and fixtures. The machines are powder coated for elegant look. The critical components are plated for rust prevention and durability.

MAIN FEATURES :
  • Selection of different speeds by pulley belt system
  • Facility to mount different load cells.
  • Facility to mount various grips / fixtures for different tests and materials like rubber, plastics, cables, leather, paper, plywood and metals

ELECTRONIC CONTROL PANEL :
  • Front panel membrane type keyboard for test set up
  • 7 segment digital display of load and displacement.
  • Storage of important parameters such as peak load, braking load and max. displacement
  • Facility to return of crosshead to home position for next test.

NOTE :
  • Over load & over travel protection is standard.
  • Lower capacity load cells can be used with any machine for better load resolution.
  • Grips can be selected from wide range available for different application.

SPECIAL OPTIONS :
  • Load cells of different capacities are available as optional items.
  • Displacement resolution of 0.1 mm is optional
  • Compression, Bending & flexural attachment to suit specific tests is available as optional.
  • A.C. Variable speed is available as optional.
  • P.C. interface is optional.

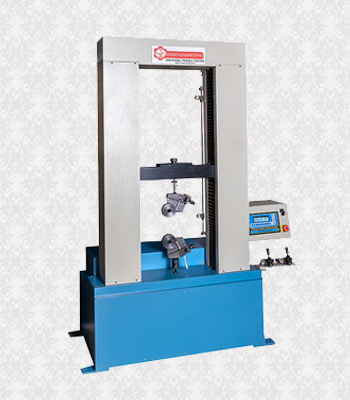

Universal Tensile Testing Machine - Twin Column


SPECIFICATIONS†UTM TWIN COLUMN FOR VARIABLE SPEED

MODEL NO. SET-T 5000 N SET-T 10 KN SET-T 20 KN SET-T 30 KN
Max. capacity(Kg) 500 1000 2000 3000
Load Resolution(N) 1:10,000 0.5 1.0 2.0 2.0
Max. crosshead displacement without grips/fixtures (mm) 900 900 900 900
Diisplacement resolution (mm) 0.2 0.2 0.2 0.2
Column clearance(mm) 380 380 450 450
Variable speed with the help of A.C.Drive 5mm/min to 100mm/min or 30mm/min to 500mm/min
Variable speed with the help of A.C.Servo Drive 1mm/min to 500mm/min
Machine Dimensions w x d x h in (mm ) 1100 x 330 x 1800 1100 x 330 x 1800 1100 x 400 x 1800 1100 x 400 x 1800
Power requirement for A.C. Drive 0.5 HP 1.0 HP 2.0 HP 2.0 HP
Power requirement for A.C. Servo Drive 400W 600W 1.0KW 1.0KW
Power Supply 230 VAC±10%, Single Phase, 50Hz with Neutral & Earth



GRIPS AND FIXTURES :


GRIPS

  The following Grips and Fixtures can be supplied as per order :

1. Grips for flat and round specimen with different inserts
2. Vice type grips
3. Pneumatic grips
4. Fixture for bend test / flexural test.
5. Sheat test attachment.

GRIPS

GRIPS

GRIPS


GRIPS

1. SEG 5.1 †For dumbell shape specimen of PVC, rubber and polyethylene Inserts knurling.
Max. Specimen size - 35 mm wide x 4 mm thk.

2. SEG 5.2 †For strips of PVC Rubber and polyester films. Inserts with rubber lining.
Max. Strip Size - 50 mm wide X 4 mm thk

3. SEG 5.3 †For plywood and asbestos. Inserts with fine knurling.
Max. Specimen size = 100 mm wide X 4 mm thk

4. SEG 5.4 †For rigid metal wire (1.0 mm dia to 6.0 mm dia )

5. SEG 5.5 †For rigid metal strips inserts with knurling.
Max. Strips size = 15 mm wide x 6 mm thk,

6. SEG 5.6 †For flexible metal wires 20 SWG and finer.

7. SEG 5.7 †For flexible rubber cords between 10 to15 mm dia.

SPECIFICATIONS UTM TWIN COLUMN FIXED SPEED BELT / PULLEY SYSTEM

MODEL NO. SET-T-5000N SET-T-10KN SET-T-20KN SET-T-30KN SET-T-50KN
Max.Capacity(Kg) 500 1000 2000 3000 5000
Load Resolution(N)
1:10000
0.5 1.0 2.0 3.0 5.0
Max. crosshead displacement without grips/fixtures (mm) 900 900 900 900 900
Displacement resolution (mm) 0.2 0.2 0.2 0.2 0.2
Column Clearance (mm) 380 380 450 450 450
Test Speed (mm/min) 50, 100, 250 & 500 30, 50 & 100 30, 50 & 100 30, 50 & 100 30, 50 & 100
Machine Dimensions
W x D x H
1100 x 325 x 1800 1100 x 325 x 1800 1100 x 400 x 1800 1100 x 400 x 1800 1100 x 400 x 1800
Power Requirement 0.5 HP 1.0 HP 2.0 HP 2.0 HP 3.0 HP
Power Supply 415VAC±10%, 3 Phase, 50 Hz with Neutral & Earth
