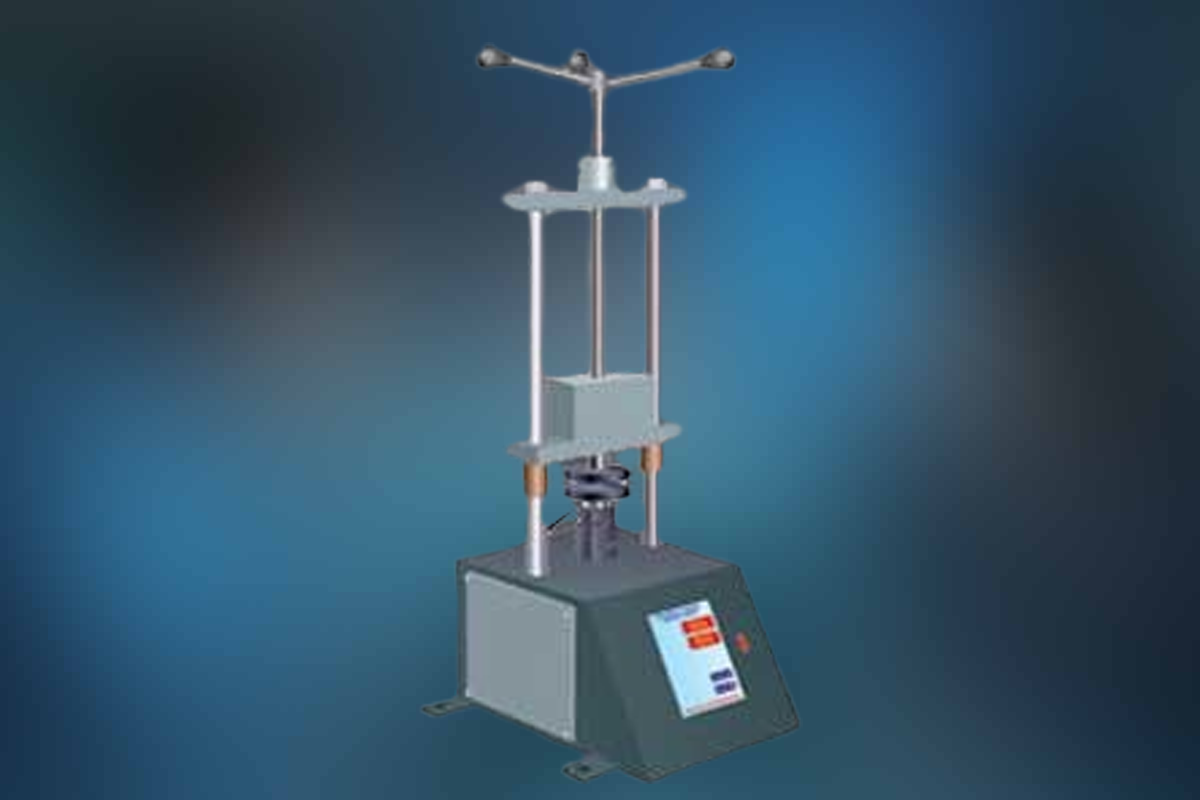

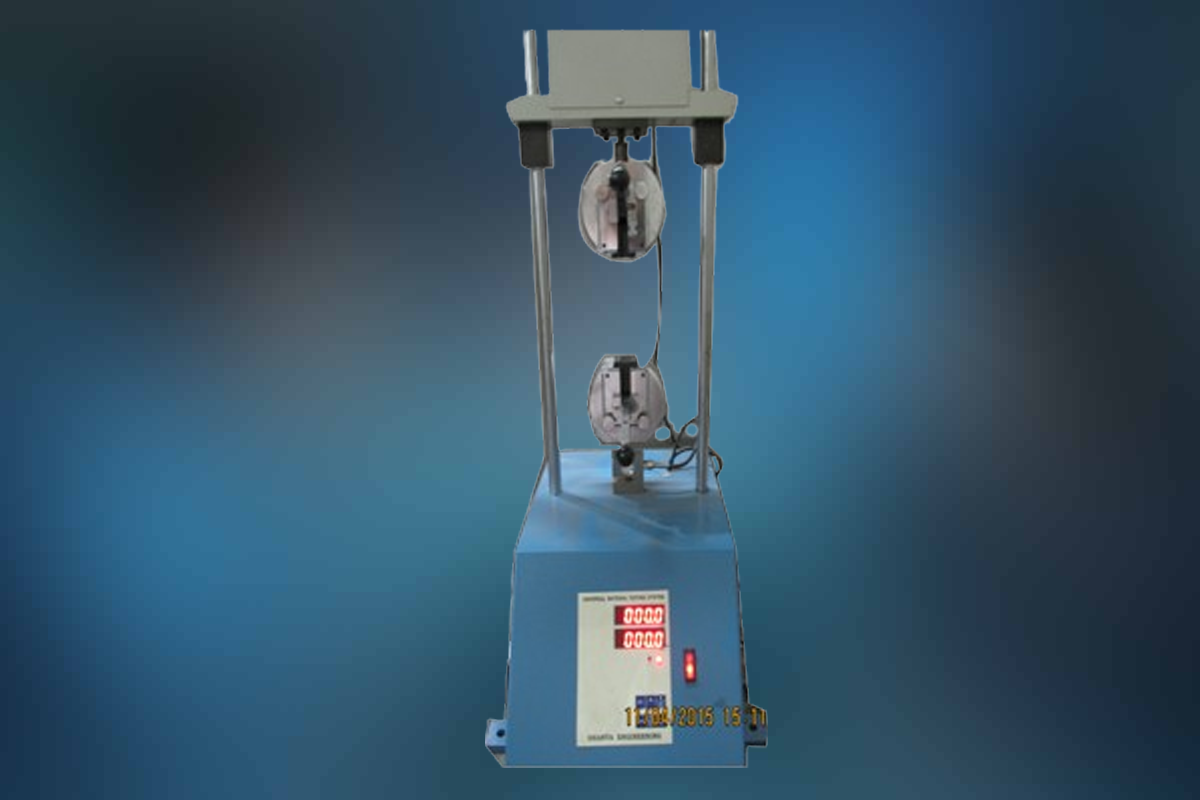

Hand Operated Tensile Testing System
Hand Operated Tensile Testing System, the two column frame with a hand wheel operated lead screw is a perfect tool for tension, compression and flexural testing of springs, rubber, paper, film etc., with apt attachments. These are appreciated for their durability, accuracy of results and high tensile strength. It is a better Tensile Tester Machine having a variety of applications.
Finishing |
Powder Coated |
Material |
MS, SS |
Voltage Supply |
230 VAC, 50Hz,Single phase |
Width between column |
200 |
Elongation/Compression Resolution |
0.1 mm |
Size |
300 x 430 x 1100 mm |
Features:
- Table Top Model
- Digital Display of load and Elongation.
- Feather touch Key board operation.
- Tare Facility for force and displacement.
- Load display in Kg. Or Newton.
Details:
MODEL |
SET-H-1000N |
SET-H-2500N |
SET-H-5000N |
|---|---|---|---|
Max. permissible force In Kg |
100 |
250 |
500 |
Load Resolution in Kg |
0.01 |
0.03 |
0.05 |
Elongation/Compression Resolution in mm |
0.1 |
0.1 |
0.1 |
Width between column in mm |
200 |
200 |
200 |
Load Cell Safety |
Alarm |
Alarm |
Alarm |
Size (w x d x h) in mm |
300 x 430 x 1100 |
300 x 430 x 1100 |
300 x 430 x 1100 |
Power Supply |
230 VAC, 50Hz, Single phase |
230 VAC, 50Hz, Single phase |
230 VAC, 50Hz, Single phase |
